"AI-CON" Gate valve....
  Back.....




  Technical Data
Manufacturing STD API 600 / BS 1414
Testing & Inspection STD API 598
Face to Face as per ANSI B 16.10
Shell wall thickness ANSI B 16.34
End connections Flanged as per ANSI B 16.5



 No. Description Material Qty.
01 Body ASTM A 216 Gr. WCB

1

02

Bonnet ASTM A 216 Gr. WCB

1

03 Wedge AISI 410 ( 13% CR.)

1

04 Seat ring AISI 410 ( 13% CR.)
1
05 Stem AISI 410 ( 13% CR.)
1
06 Gland Carbon Steel
1
07 Yoke Sleeve
NI - Resist
1
08 Bonnet Gasket
AISI 410
1
09 Gasket
Spiral wound metalic Gasket
1
10 Gland packing
Matalic Wire Reinforced Graphited Asbestos/ Grafoil
--
11 Bonnet Stud & Nut
ASTM A 193 Gr. B7 ASTM A 194 Gr. 2H
--
12 Eye Bolt & Nut
ASTM A 193 Gr. B7 ASTM A 194 Gr. 2H
2 Set
13 Hand Wheel
Cast Iron
1
14 Hand Wheel Nut
Carbon Steel 1

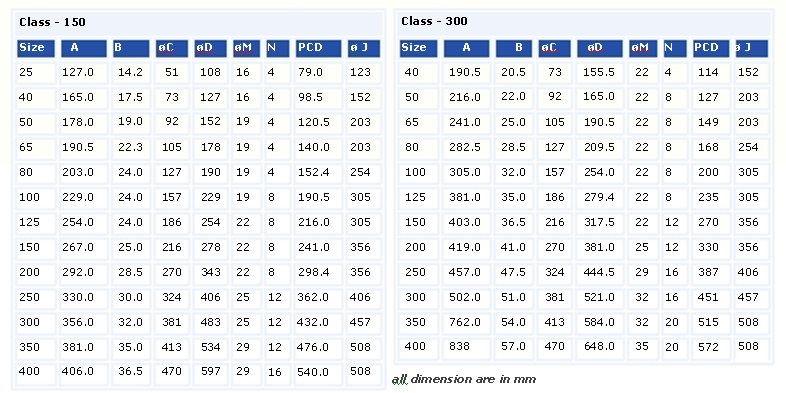

  Valve Dimantion ( Click Here For More Detail)


  Primary service reating & test pressure
Class Working press. HYD. Test pressure
Body Seat Temp.
150 150 PSIG 425 PSIG 300 PSIG 500 °F
300 300 PSIG 1100 PSIG 800 PSIG 800 °F
Air Test - Seat 80 PSIG ± 10 PSIG
